Main Technical Parameters
| Qauv | JH-FM700D-A | JH-FM900D-A | JH-FM1100D-A | JH-FM1300D-A | JH-FM1500D-A | JH-FM1700D-A | JH-FM1900D-A |
| Cov khoom siv raw | HDPE / LDPE / LLDPE | HDPE / LDPE / LLDPE | HDPE / LDPE / LLDPE | HDPE / LDPE / LLDPE | HDPE / LDPE / LLDPE | HDPE / LDPE / LLDPE | HDPE / LDPE / LLDPE |
| Khoom dav | 200-600 hli | 300-800 hli | 400-1000 hli | 800-1200 hli | 1000-1400 hli | 1100-1600 hli | 1200-1800 hli |
| Khoom Thickness | 0.015-0.2 hli | 0.015-0.2 hli | 0.015-0.2 hli | 0.015-0.3 hli | 0.015-0.4 hli | 0.015-0.5 hli | 0.015-0.6 hli |
| Maximum Extrusion Capacity | 50-80kg / h | 60-90kg / h | 70-110kg / h | 90-130kg / h | 110-150kg / h | 120-160kg / h | 130-190kg / h |
| Tshuab Extrusion | |||||||
| Ntsia Hlau Diameter | Φ 45 x 2 mm | Φ50 x 2 mm | Φ55 x 2 mm | Φ60 x 2 mm | Φ65 x 2 mm | 70 x 2 mm | 75 x 2 mm |
| Draw Ratio ntawm Screw | 30:1/ 32:1 | 30:1 /32:1 | 30:1 /32:1 | 30:1 /32:1 | 30:1 /32:1 | 30:1 /32:1 | 30:1 /32:1 |
| Ntsia Hlau Khoom | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA |
| Khoom Siv Lub tog raj kheej | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA |
| Cov khoom siv lub tog raj kheej txias | 180w×2-2 | 180w×2-2 | 250w×3-2 | 250w×3-2 | 370w×3-2 | 370w×4-2 | 370w×5-2 |
| Lub Hwj Chim | 15 KW × 2 | 18.5 KW × 2 | 18.5 KW × 2 | 22 KW × 2 | 30 KW × 2 | 37 KW × 2 | 45 KW × 2 |
| Khoom Taw Qhia Kub Kub Tswj | 3区*2 | 3区*2 | 3 Zones * 2 | 4 Zones * 2 | 4 Zones * 2 | 4 Zones * 2 | 5 Zones * 2 |
| Kev siv hluav taws xob nruab nrab | 18 kwv | 25 kwv | 35 kwv | 42 kwv | 50 kwv | 62 kwv | 75 kwv |
| Tuag taub hau | |||||||
| Tuag | 60mm (HDPE) 120 hli (LDPE) |
80mm (HDPE) 140 hli (LDPE) |
100 hli (HDPE) 160 hli (LDPE) |
120mm (HDPE) 250 hli (LDPE) |
140mm (HDPE) 250 hli (LDPE) |
160mm (HDPE) 300 hli (LDPE) |
180mm (HDPE) 350 hli (LDPE) |
| Tig | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree |
| Kev Tswj Kub Kub | 2区 | 2区 | 3 Zones | 3 Zones | 3 Zones | 4 Zones | 5 Zones |
| Dual Air Outlet Cua Ring | Φ700 hli | Φ800 hli | Φ800 hli | Φ1000 hli | Φ1000 hli | Φ1200 hli | Φ1500 hli |
| Ntxuam | 3 kwv | 4 kwv | 5,5 kwv | 7.5 kwm | 7.5 kwm | 11 kwv | 11 kwv |
| Extraction ntaus ntawv | |||||||
| Rub Cov Menyuam Dav | 700 hli | 900 hli | 1100 hli | 1300 hli | 1500 hli | 1700 hli | 1900 hli |
| Zoo Extraction Ntawm Membrane Dav | 600 hli | 800 hli | 1000 hli | 1200 hli | 1400 hli | 1600 hli | 1800 hli |
| Up Thiab Down Lifting Hom | 700 hli | 700 hli | 700 hli | 700 hli | 700 hli | 700 hli | 700 hli |
| Traction Ceev | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min |
| Extract lub cev muaj zog | 1.5 kwm | 2.2 kwm | 2.2 kwm | 3 kwv | 4 kwv | 5,5 kwv | 7.5 kwm |
| Coj-Tsev Ntaus | |||||||
| Roll Up Hwj chim | 10N.m | 16N.m | 16N.m | 25N.m | 40N.m | 60N.m | 100N.m |
| Siv -Kev nrawm | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min |
| Sab nraud Dimensions | 4.0×2.3×4.5m | 5.5×2.5×5.5m | 6.0×2.8×6.2m | 7.0×3.0×6.8m | 7.5×3.2×7.2m | 8.0×3.5×7.8m | 8.5×4.0×8.5m |

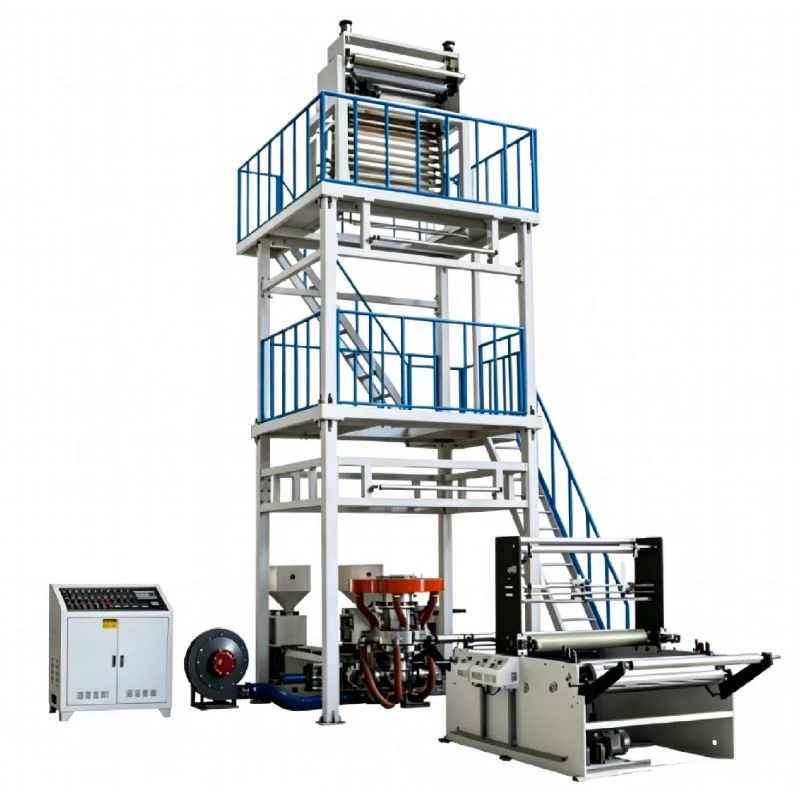

AB HDPE LDPE siab- ceev tsis siv neeg tshuab tshuab tshuab yog lub tshuab tshuab tshuab tshwj xeeb tsim los ntawm Jianhao rau cov neeg siv khoom nrhiav kev ua haujlwm siab thiab raug. Lub tshuab tsis siv neeg tshuab zaj duab xis no yog tsim los rau kev ua HDPE, LDPE, thiab LLDPE raw cov ntaub ntawv, muab cov khoom zoo adaptability.
Lub AB HDPE LDPE siab- ceev tsis siv neeg tshuab tshuab tshuab siv lub tshuab nitrided ntxaib- ntsia hlau extrusion nrog qhov ntev - rau - txoj kab uas hla ntawm 30: 1 / 32: 1. Cov ntsia hlau yog ua los ntawm siab - zoo SACM-645/38 CRMMOALA steel, uas muaj superior durability thiab hnav tsis kam, txhim kho lub neej ntawm lub tshuab thiab cov khoom zoo. Cov qauv no tuaj yeem tsim cov yeeb yaj kiab nrog qhov dav ntawm 200 hli mus rau 1800 hli thiab thicknesses ntawm 0.015 hli mus rau 0.6 hli, nrog rau qhov siab tshaj plaws extrusion muaj peev xwm txog li 190 kg / teev. Cov neeg siv khoom tuaj yeem hloov kho cov zis kom tau raws li qhov xav tau ntau lawm.

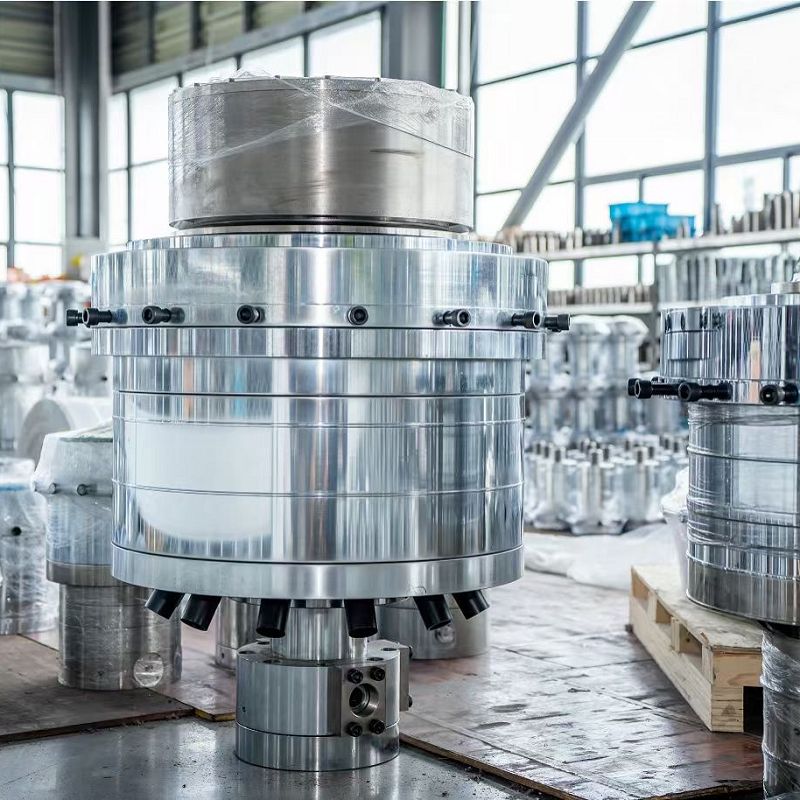

Qhov no AB HDPE LDPE siab- ceev tsis siv neeg tshuab tshuab tshuab yog nruab nrog 360℃rotating tuag lub taub hau, dual cua qhov hluav taws xob rings, thiab ib tug ntau - cheeb tsam leej kub tswj system. Cov yam ntxwv no ua kom cov yeeb yaj kiab tuab tuab, ruaj khov npuas tsim, thiab cov khoom siv tsawg tsawg. Lub tshuab winding txhawb nqa traction ceev ntawm 10-100 meters ib feeb thiab nta tsis siv neeg nro tswj, ua kom zoo zoo thiab zoo li qub winding, txo nqi zog, thiab txhim kho cov khoom winding zoo.
Lub tshuab zaj duab xis tshuab no yog tsim rau ntim khoom noj, ntim khoom, ua liaj ua teb zaj duab xis, thiab ntim khoom siv. Nws qhov kev siv hluav taws xob tsawg tsawg (qhov nruab nrab siv hluav taws xob tsawg li 18 kW rau kev nkag- theem qauv) txuag cov neeg siv khoom ntawm cov nqi hluav taws xob. Cov nqi kho mob qis kom ua haujlwm ruaj khov thiab tso cai rau kev daws teeb meem sai. Ua tsaug rau Jianhao qhov txhim khu kev qha engineering tsim thiab kev tswj xyuas kom zoo, AB HDPE LDPE siab-ceev tsis siv neeg tshuab tshuab lub hom phiaj los muab kev ua haujlwm ntev -lub sij hawm ruaj khov, ua rau nws yog ib qho kev xaiv zoo tshaj plaws rau cov yas zaj duab xis manufacturers txhim kho lawv cov kab ntau lawm.
Khoom nta

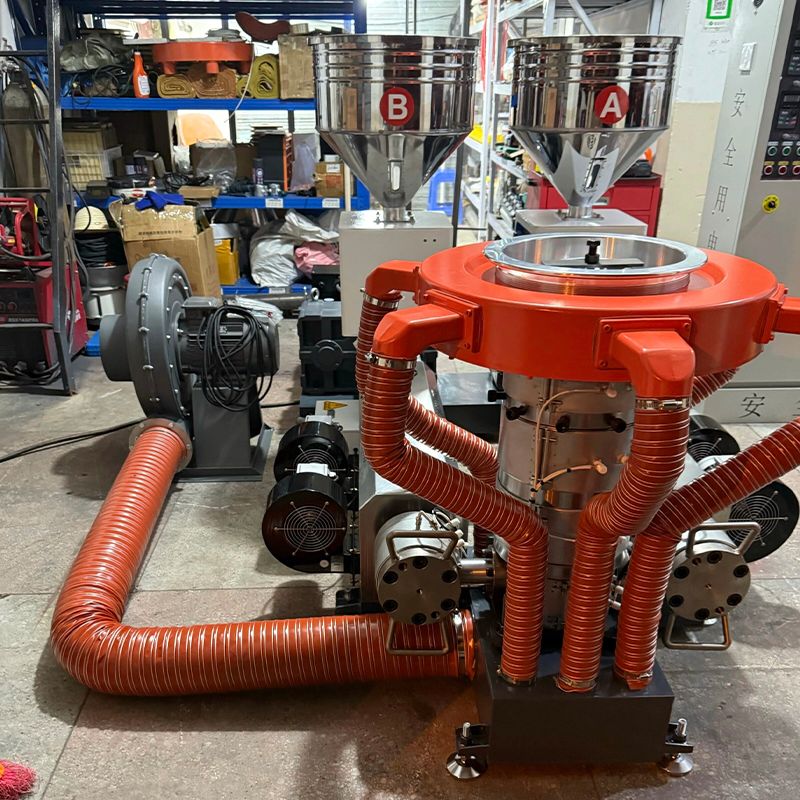

Advanced AB Twin-Screw Co-Extrusion Technology
Qhov ntxaib no - ntsia hlau AB tshuab extrusion tshuab siv AB co-extrusion thev naus laus zis, tso cai rau siv cov khoom siv rov ua dua tshiab hauv nruab nrab txheej thaum tswj hwm siab - cov khoom yas zoo hauv txheej txheej. Qhov no txo cov nqi raw khoom yam tsis muaj kev cuam tshuam rau zaj duab xis lub zog lossis pob tshab.
High Output thiab ruaj khov ntau lawm
Nruab nrog ob lub siab -kev ua tau zoo extruders thiab nitriding ntsia hlau, lub tshuab cua tshuab tshuab no muaj kev ua haujlwm siab thiab ua haujlwm zoo heev.
Uniform Film Thickness
Precision tuag, dual-airflow rings, thiab ib tug ntse kub tswj system kom zoo xws li cov zaj duab xis thickness, txhim kho tag nrho cov tshuab kev ua tau zoo thiab guaranteeing tiav cov khoom zoo.
Intelligent Control

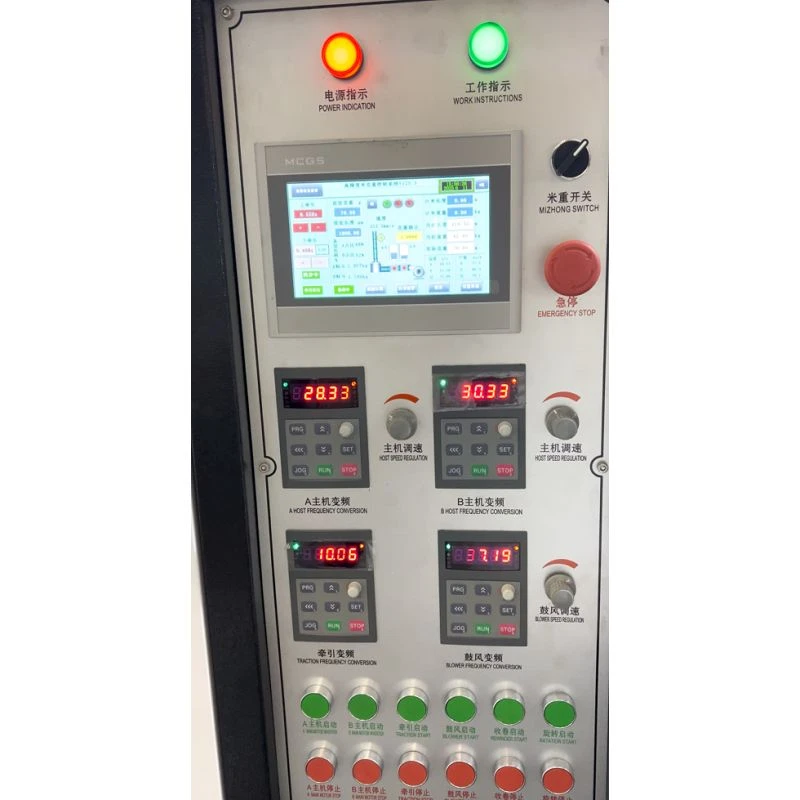

PLC tswj qhov system nta lub touchscreen interface, tso cai rau cov neeg ua haujlwm kho qhov tsis muaj thiab saib xyuas cov txheej txheem tsim khoom raws li cov ntaub ntawv pom, yog li txhim kho tag nrho cov nroj tsuag efficiency.
Wide Material Compatibility
Wide Material Compatibility: Cov ntxaib - ntsia hlau AB tshuab extrusion tshuab yog tsim rau kev ua HDPE, LDPE, LLDPE, thiab cov khoom siv polyethylene, muab cov neeg siv khoom nrog ntau cov kev daws teeb meem thiab cov khoom siv raw zoo sib xws.
Daim ntawv thov

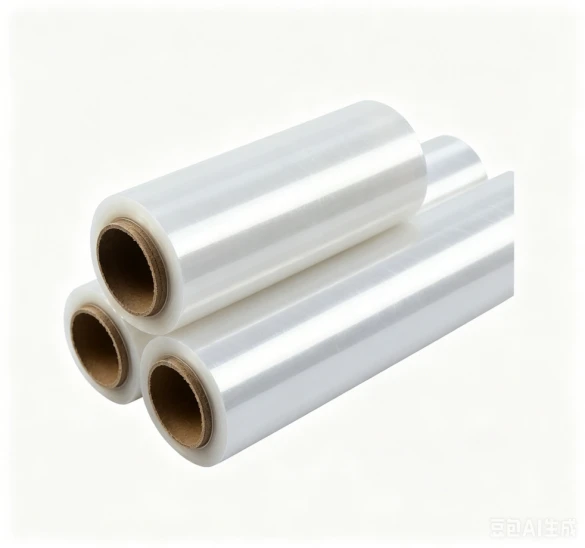

CovTwin Ntsia HlauABTshuab tshuab tshuabyog dav siv rau kev tsim ntau yam yas zaj duab xis rau saj zawg zog ntim thiab muaj kev siv, xws li:
- · Khw Bag Film
- · T-Shirt Bag Film
- · Lub hnab khib nyiab zaj duab xis
- · Food Packaging Film
- · Courier Mailing Bag Film
- · Agricultural Mulch Film
- · Industrial Ntim Zaj duab xis
- · Kev Tiv Thaiv Ntim Zaj Duab Xis
- · Stretch Film Base Zaj duab xis
- · General Polyethylene Ntim Zaj duab xis
Lub tshuab no yog tshwj xeeb tshaj yog haum rau manufacturers nrhiav los tsimsiab - zoo ntim zaj duab xis thaum txo cov nqi raw khoom los ntawmABco-extrusion technology. Nws yog dav siv nyob rau hauv lub ntim khoom noj, khw muag khoom ntim, logistics, ua liaj ua teb, thiab industrial ntim industries.
Peb Qhov Kev Pabcuam
Ua ntej- Kev Sib Tham Muag
Peb cov kws tshaj lij kev muag khoom muab kev tshaj lij tshuab kev pom zoo raws li koj cov kev xav tau ntau lawm, cov khoom siv raw, thiab cov khoom tiav tiav.
Customized Solutions
Peb muab cov txheej txheem tshuab customized kom tau raws li qhov sib txawv ntau lawm, cov qauv ua yeeb yaj kiab, thiab daim ntawv thov ntim.
Installation & Kev cob qhia
Cov kws tshaj lij engineers muaj nyob rau txawv teb chaws installation, tshuab commissioning, thiab cov neeg ua haujlwm kev cob qhia kom ntseeg tau tias kev tsim khoom zoo.
Quality Assurance
Txhua lub tshuab ua tiav kev soj ntsuam zoo thiab sim ua haujlwm ua ntej ua zaub mov xa tuaj kom lav qhov kev ua tau zoo thiab kev ua haujlwm ruaj khov.
Kev pab txhawb nqa
Peb pab pawg kws tshaj lij muab kev txhawb nqa online 24/7, kev daws teeb meem hauv thaj chaw deb, thiab cov lus qhia txog kev saib xyuas raws sij hawm kom txo qis sijhawm.
Ib -Xyoo Warranty
Txhua lub tshuab tuaj nrog ib - xyoo lav. Thaum lub sijhawm lav, peb muab cov khoom hloov pauv dawb rau tsis yog - kev puas tsuaj rau tib neeg thiab kev txhawb nqa lub neej.
FAQ
1. Twin Screw AB tshuab tshuab yog dab tsi?
A Twin Screw AB Blowing Film Tshuab yog peb - txheej co-extrusion zaj duab xis tshuab tshuab tsim los tsim cov yeeb yaj kiab zoo - zoo PE nrog cov qauv A / B / A. Ob txheej txheej (Ib txheej) muab lub zog zoo heev, kev sib khi ua tau zoo, thiab cov tsos, thaum txheej nruab nrab (B txheej) tuaj yeem siv cov khoom siv rov ua dua lossis raug nqi -cov khoom siv tau zoo los txo cov nqi tsim khoom.
2. Cov ntaub ntawv dab tsi tuaj yeem ua tiav los ntawm Twin Screw AB Blowing Film Machine?
Lub tshuab tsim nyog rau kev ua ntau yam khoom siv polyethylene, suav nrog HDPE, LDPE, LLDPE, thiab cov khoom siv PE rov ua dua. Nws yog dav siv rau kev tsim cov hnab ntim khoom, hnab khib nyiab, ntim cov yeeb yaj kiab, cov yeeb yaj kiab ua liaj ua teb, thiab cov khoom ntim khoom lag luam.
3. Dab tsi yog qhov zoo ntawm AB peb- txheej co-extrusion tshuab?
AB thev naus laus zis txhim kho kev ua yeeb yaj kiab thaum txo cov nqi tsim khoom. Los ntawm kev ntxiv cov khoom siv rov ua dua tshiab rau hauv nruab nrab txheej, cov tuam txhab lag luam tuaj yeem txuag cov nqi ntawm cov khoom siv raw thaum tuav lub zog tensile zoo, yoog raws, thiab cov khoom sib khi los ntawm qib siab - cov txheej txheem zoo.
4. Vim li cas thiaj xaiv cov ntsia hlau ntxaib tsim rau AB zaj duab xis tshuab tshuab?
Lub ntxaib ntsia hlau extrusion system muab kev ua tau zoo ntawm plasticizing, ntau cov khoom sib xyaw ua ke, thiab ruaj khov extrusion tso zis. Nws yog qhov tshwj xeeb tshaj yog tsim rau kev ua cov khoom siv rov ua dua tshiab thiab cov qauv ua yeeb yaj kiab nyuaj uas yuav tsum tau muaj kev cuam tshuam zoo thiab sib xws.
5. Lub tshuab no tuaj yeem tsim cov yeeb yaj kiab li cas?
Twin Screw AB Blowing Film Tshuab tuaj yeem tsim ntau yam PE zaj duab xis, suav nrog:
- Khw hnab movie
- Lub hnab khib nyiab zaj duab xis
- Vest bag film
- Ntim zaj duab xis
- Agricultural zaj duab xis
- Recycled yas zaj duab xis
Qhov kawg zaj duab xis specifications tuaj yeem kho raws li cov neeg siv khoom xav tau ntau lawm.
6. Cov ntaub ntawv siv tau tuaj yeem siv rau hauv lub tshuab no?
Yog lawm. Ib qho zoo tshaj plaws ntawm cov qauv AB yog cov khoom siv rov ua dua tshiab tuaj yeem siv rau hauv nruab nrab txheej. Qhov no pab cov neeg siv khoom txo cov nqi raw khoom thaum tswj cov tsos thiab cov khoom siv ntawm cov yeeb yaj kiab tiav.
7. Jianhao Machinery yuav ua li cas thiaj ua tau cov yeeb yaj kiab zoo?
Jianhao Machinery txais kev siv tshuab extrusion siab heev, kev tswj qhov kub thiab txias, ruaj khov tshuab, thiab kev tsim cov ntsia hlau zoo kom ntseeg tau tias cov yeeb yaj kiab tuab tuab, tsim npuas ruaj khov, thiab ua haujlwm zoo ib yam.
8. Puas yog Twin Screw AB Blowing Film Tshuab lub zog- ua haujlwm tau zoo?
Yog lawm. Lub tshuab yog tsim los nrog kev ua kom zoo tshaj plaws extrusion thiab cov khoom siv tau zoo los txo cov kev siv hluav taws xob thaum lub sijhawm ua haujlwm tas mus li. Cov qauv AB kuj tseem pab txo qis kev siv cov khoom kim heev nkauj xwb, txhim kho kev tsim khoom tag nrho.
9. Cov kev lag luam twg tuaj yeem siv cov yeeb yaj kiab uas tsim los ntawm lub tshuab no?
Cov yeeb yaj kiab tsim los ntawm Twin Screw AB Tshuab Tshuab yog siv dav hauv:
- Kev lag luam ntim khoom noj
- Kev tsim khoom lub hnab
- Kev ntim khoom pov tseg
- Kev ua liaj ua teb
- Muaj kev daws teeb meem ntim khoom
10. Puas yog Jianhao Machinery muab kev teeb tsa thiab tom qab- kev muag khoom?
Yog lawm. Jianhao Machinery muab kev txhawb nqa kev tshaj lij, kev taw qhia kev teeb tsa lub tshuab, kev cob qhia kev ua haujlwm, thiab ntev -lub sijhawm tom qab- kev muag khoom los xyuas kom cov neeg siv khoom tuaj yeem ua haujlwm tau zoo thiab ua haujlwm tau zoo.
