Main Technical Parameters
| Qauv | JH-FM700D-A | JH-FM900D-A | JH-FM1100D-A | JH-FM1300D-A | JH-FM1500D-A | JH-FM1700D-A | JH-FM1900D-A |
| Cov khoom siv raw | HDPE / LDPE / PE | HDPE / LDPE / PE | HDPE / LDPE / PE | HDPE / LDPE / PE | HDPE / LDPE / PE | HDPE / LDPE / PE | HDPE / LDPE / PE |
| Khoom dav | 200-600 hli | 300-800 hli | 400-1000 hli | 800-1200 hli | 1000-1400 hli | 1100-1600 hli | 1200-1800 hli |
| Khoom Thickness | 0.015-0.2 hli | 0.015-0.2 hli | 0.015-0.2 hli | 0.015-0.3 hli | 0.015-0.4 hli | 0.015-0.5 hli | 0.015-0.6 hli |
| Maximum Extrusion Capacity | 50-80kg / h | 60-90kg / h | 70-110kg / h | 90-130kg / h | 110-150kg / h | 120-160kg / h | 130-190kg / h |
| Tshuab Extrusion | |||||||
| Ntsia Hlau Diameter | Φ 45 x 2 mm | Φ50 x 2 mm | 55mmx 2 | Φ60 x 2 mm | Φ65 x 2 mm | 70 x 2 mm | 75 x 2 mm |
| Draw Ratio ntawm Screw | 30:1/ 32:1 | 30:1 /32:1 | 30:1 /32:1 | 30:1 /32:1 | 30:1 /32:1 | 30:1 /32:1 | 30:1 /32:1 |
| Ntsia Hlau Khoom | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA |
| Khoom Siv Lub tog raj kheej | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA |
| Cov khoom siv lub tog raj kheej txias | 180w×2-2 | 180w×2-2 | 250w×3-2 | 250w×3-2 | 370w×3-2 | 370w×4-2 | 370w×5-2 |
| Lub Hwj Chim | 15 KW × 2 | 18.5 KW × 2 | 18.5 KW × 2 | 22 KW × 2 | 30 KW × 2 | 37 KW × 2 | 45 KW × 2 |
| Khoom Taw Qhia Kub Kub Tswj | 3 Zones * 2 | 3 Zones * 2 | 3 Zones * 2 | 4 Zones * 2 | 4 Zones * 2 | 4 Zones * 2 | 5 Zones * 2 |
| Kev siv hluav taws xob nruab nrab | 18 kwv | 25 kwv | 35 kwv | 42 kwv | 50 kwv | 62 kwv | 75 kwv |
| Tuag taub hau | |||||||
| Tuag | 60mm (HDPE) 120 hli (LDPE) |
80mm (HDPE) 140 hli (LDPE) |
100 hli (HDPE) 160 hli (LDPE) |
120mm (HDPE) 250 hli (LDPE) |
140mm (HDPE) 250 hli (LDPE) |
160mm (HDPE) 300 hli (LDPE) |
180mm (HDPE) 350 hli (LDPE) |
| Tig | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree |
| Kev Tswj Kub Kub | 2 Zones | 2 Zones | 3 Zones | 3 Zones | 3 Zones | 4 Zones | 5 Zones |
| Dual Air Outlet Cua Ring | Φ700 hli | Φ800 hli | Φ800 hli | Φ1000 hli | Φ1000 hli | Φ1200 hli | Φ1500 hli |
| Ntxuam | 3 kwv | 4 kwv | 5,5 kwv | 7.5 kwm | 7.5 kwm | 11 kwv | 11 kwv |
| Extraction ntaus ntawv | |||||||
| Rub Cov Menyuam Dav | 700 hli | 900 hli | 1100 hli | 1300 hli | 1500 hli | 1700 hli | 1900 hli |
| Zoo Extraction Ntawm Membrane Dav | 600 hli | 800 hli | 1000 hli | 1200 hli | 1400 hli | 1600 hli | 1800 hli |
| Up Thiab Down Lifting Hom | 700 hli | 700 hli | 700 hli | 700 hli | 700 hli | 700 hli | 700 hli |
| Traction Ceev | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min |
| Extract lub cev muaj zog | 1,5 kwv | 2.2 kwm | 2.2 kwm | 3 kwv | 4 kwv | 5,5 kwv | 7.5 kwm |
| Coj-Tsev Ntaus | |||||||
| Roll Up Hwj chim | 10N.m | 16N.m | 16N.m | 25N.m | 40N.m | 60N.m | 100N.m |
| Siv -Kev nrawm | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min |
| Sab nraud Dimensions | 4.0×2.3×4.5m | 5.5×2.5×5.5m | 6.0×2.8×6.2m | 7.0×3.0×6.8m | 7.5×3.2×7.2m | 8.0×3.5×7.8m | 8.5×4.0×8.5m |
Jianhao's ABA peb -txheej siab- nrawm co-extrusion tshuab zaj duab xis tshuab boasts cov zis ntau dua, zoo tshaj plaws zaj duab xis zoo, qis zog noj, thiab txo nqi ntau lawm, ua rau nws haum rau cov neeg muas zaub xav tau kev kho dua tshiab. Nws ua cov HDPE, LDPE, thiab LLDPE raw cov ntaub ntawv, feem ntau tsim cov hnab yuav khoom, hnab khib nyiab, ntim zaj duab xis, ua liaj ua teb zaj duab xis, thiab lwm yam PE zaj duab xis. ABA peb- txheej co-extrusion tshuab tso cai rau cov ntaub ntawv nkauj xwb kom muaj zog nyob rau hauv txheej txheej sab nraud, thaum cov txheej nruab nrab siv cov khoom siv rov ua dua lossis cov khoom siv calcium, txo cov nqi raw khoom yam tsis muaj kev cuam tshuam rau cov tsos.
Lub tshuab tshuab cua tshuab no muaj nyob rau hauv ntau cov qauv, nrog qhov dav ntawm 700 hli mus rau 1900 hli, cov khoom dav ntawm 200 hli txog 1800 hli, thiab cov khoom tawm los ntawm 50 kg / teev txog 190 kg / teev. Txawm hais tias cov neeg siv khoom tau hloov kho cov kab ntau lawm lossis nqis peev hauv lub tshuab tshuab tshuab tshuab, nws yog tus nqi - kev xaiv zoo.
Txhua tus ntsia hlau yog cov ntsia hlau nitrided ua los ntawm SACM-645/38 CRMOALA alloy steel nrog 30: 1 lossis 32: 1 piv. Ua ke cov cuab yeej tswj qhov kub thiab txias thiab qhov chaw tswj qhov kub thiab txias, lub tshuab cua tshuab tshuab no muaj cov khoom siv zoo plasticizing thiab lub neej ua haujlwm ntev, tswj kev ruaj ntseg txawm tias ua haujlwm 24-teev tas li.
Lub tshuab cua tshuab no yog nruab nrog Edge Position Control (EPC) System. Thaum lub tshuab cua tshuab, zaj duab xis tuaj yeem hloov mus tom qab vim kev sib tw, kev hloov pauv, lossis cov khoom siv vibration.
Qhov kev kho ntug tsis siv neeg pom cov ntug zaj duab xis siv photoelectric lossis ultrasonic sensors. Thaum kuaj pom qhov hloov pauv, nws tswj cov actuator kom hloov kho txoj haujlwm winding, kom ntseeg tau tias cov yeeb yaj kiab tseem nyob ntawm qhov teeb tsa.
ABA 3 Txheej High Speed Co extrusion zaj duab xis tshuab tshuab ua cov yeeb yaj kiab uas muaj qhov pom tseeb dua, muaj txiaj ntsig ntau dua, thiab ua tiav cov yob tiav, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov chaw tsim khoom nrhiav kev zoo dua.
Khoom nta
Advanced ABA Peb-Txheej Co-Extrusion Technology
CovTwin Ntsia Hlau ABA Tshuab Tshuabadopts advanced ABA co-extrusion thev naus laus zis, tso cai siv cov khoom siv rov ua dua tshiab nyob rau hauv nruab nrab txheej thaum tswj hwm tus nqi zoo nkauj ntawm cov txheej txheej sab nrauv. Qhov no txo qis cov nqi raw khoom yam tsis muaj kev cuam tshuam rau zaj duab xis lub zog lossis qhov tsos.
Siab tso zis & ruaj khov ntau lawm
Nruab nrog ob lub siab -kev ua tau zoo extruders thiab cov txheej txheem extrusion optimized, lub tshuab xa cov khoom ua haujlwm siab, cov khoom tsim tawm ruaj khov, thiab cov yeeb yaj kiab zoo ib yam, ua rau nws zoo tagnrho rau kev tsim khoom lag luam txuas ntxiv.
Zoo heev zaj duab xis Thickness Uniformity
Lub taub hau tuag precision, dual- di ncauj lub nplhaib, thiab kev tswj xyuas qhov kub thiab txias kom paub meej cov yeeb yaj kiab tuab thoob plaws tag nrho cov yeeb yaj kiab dav, txhim kho cov khoom siv kho tshuab thiab txo cov khoom pov tseg.
Zog -Kev Tsim Nyog
Lub tshuab nta lub zog tsav zoo thiab cov cuab yeej siv hluav taws xob zoo, pab txo qis kev siv hluav taws xob thaum tswj cov khoom lag luam siab thiab txo cov nqi khiav lag luam.
Ua haujlwm yooj yim nrog kev tswj hwm ntse

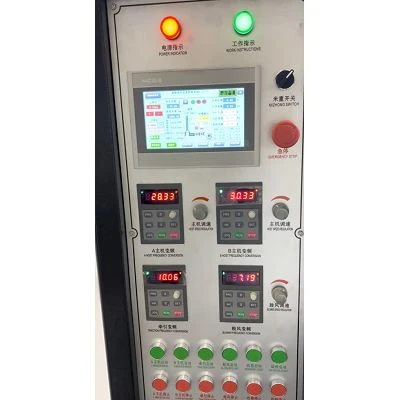

Tus neeg siv -PLC tswj hwm tus phooj ywg nrog lub touchscreen interface tso cai rau cov tswv lag luam kom yooj yim kho cov txheej txheem, saib xyuas cov xwm txheej tsim khoom, thiab txhim kho kev ua haujlwm tag nrho.
Wide Material Compatibility
CovTwin Ntsia Hlau ABA Tshuab Tshuabyog tsim rau kev uaHDPE, LDPE, LLDPE, thiab siv cov khoom siv polyethylene, muab cov chaw tsim khoom nrog ntau dua qhov yooj yim thiab cov khoom siv qis dua.
Daim ntawv thov
CovTwin Ntsia Hlau ABA Tshuab Tshuabyog dav siv rau kev tsim ntau yam yas zaj duab xis rau saj zawg zog ntim thiab muaj kev siv, xws li:
- · Khw Bag Film
- · T-Shirt Bag Film
- · Lub hnab khib nyiab zaj duab xis
- · Food Packaging Film
- · Courier Mailing Bag Film
- · Agricultural Mulch Film
- · Industrial Ntim Zaj duab xis
- · Tiv Thaiv Ntim Zaj Duab Xis
- · Stretch Film Base Zaj duab xis
- · General Polyethylene Ntim Zaj duab xis
Lub tshuab no yog tshwj xeeb tshaj yog haum rau manufacturers nrhiav los tsimsiab- ntim cov yeeb yaj kiab zoo thaum txo cov nqi raw khoom los ntawm ABA co-extrusion technology. Nws yog dav siv nyob rau hauv lub ntim khoom noj, khw muag khoom ntim, logistics, ua liaj ua teb, thiab industrial ntim industries.
Peb Qhov Kev Pabcuam
Ua ntej- Kev Sib Tham Muag
Peb cov kws tshaj lij kev muag khoom muab kev tshaj lij tshuab kev pom zoo raws li koj cov kev xav tau ntau lawm, cov khoom siv raw, thiab cov khoom tiav tiav.
Customized Solutions
Peb muab cov txheej txheem tshuab customized kom tau raws li qhov sib txawv ntau lawm, cov qauv ua yeeb yaj kiab, thiab daim ntawv thov ntim.
Installation & Kev cob qhia
Cov kws tshaj lij engineers muaj nyob rau txawv teb chaws installation, tshuab commissioning, thiab kev cob qhia neeg ua haujlwm kom ntseeg tau tias kev tsim khoom zoo.
Quality Assurance
Txhua lub tshuab ua tiav kev soj ntsuam zoo thiab sim ua haujlwm ua ntej ua zaub mov xa tuaj kom lav qhov kev ua tau zoo thiab kev ua haujlwm ruaj khov.
Kev pab txhawb nqa
Peb pab pawg kws tshaj lij muab kev txhawb nqa online 24/7, kev daws teeb meem hauv thaj chaw deb, thiab cov lus qhia txog kev saib xyuas raws sij hawm kom txo qis sijhawm.
Ib -Xyoo Warranty
Txhua lub tshuab tuaj nrog ib - xyoo lav. Thaum lub sijhawm lav, peb muab cov khoom hloov pauv pub dawb rau tsis yog -kev puas tsuaj rau tib neeg thiab kev txhawb nqa kev ua neej.
FAQ
1. Dab tsi yog Twin Screw ABA Tshuab Tshuab?
ABA Twin Screw ABA Blowing Film Tshuab yog peb - txheej co-extrusion zaj duab xis tshuab tshuab tsim los tsim cov yeeb yaj kiab zoo - zoo PE nrog cov qauv A / B / A. Ob txheej txheej (Ib txheej) muab lub zog zoo heev, kev sib khi ua tau zoo, thiab cov tsos, thaum txheej nruab nrab (B txheej) tuaj yeem siv cov khoom siv rov ua dua lossis raug nqi -cov khoom siv tau zoo los txo cov nqi tsim khoom.
2. Cov ntaub ntawv dab tsi tuaj yeem ua tiav los ntawm Twin Screw ABA Tshuab Tshuab?
Lub tshuab tsim nyog rau kev ua ntau yam khoom siv polyethylene, suav nrog HDPE, LDPE, LLDPE, thiab cov khoom siv PE rov ua dua. Nws yog dav siv rau kev tsim cov hnab ntim khoom, hnab khib nyiab, ntim cov yeeb yaj kiab, cov yeeb yaj kiab ua liaj ua teb, thiab cov khoom ntim khoom lag luam.
3. Dab tsi yog qhov zoo ntawm ABA peb- txheej co-extrusion tshuab?
ABA thev naus laus zis txhim kho kev ua yeeb yaj kiab thaum txo cov nqi tsim khoom. Los ntawm kev ntxiv cov khoom siv rov ua dua tshiab rau hauv nruab nrab txheej, cov tuam txhab lag luam tuaj yeem txuag cov nqi ntawm cov khoom siv raw thaum tuav lub zog tensile zoo, yooj, thiab sealing zog los ntawm siab - zoo txheej txheej.
4. Vim li cas thiaj xaiv cov ntsia hlau ntxaib tsim rau ABA zaj duab xis tshuab tshuab?
Lub ntxaib ntsia hlau extrusion system muab kev ua tau zoo ntawm plasticizing, ntau cov khoom sib xyaw ua ke, thiab ruaj khov extrusion tso zis. Nws yog qhov tshwj xeeb tshaj yog tsim rau kev ua cov khoom siv rov ua dua tshiab thiab cov yeeb yaj kiab complex formulations uas yuav tsum tau ua kom zoo heev dispersion thiab sib xws.
5. Lub tshuab no tuaj yeem tsim cov yeeb yaj kiab li cas?
Twin Screw ABA Tshuab Tshuab tuaj yeem tsim ntau yam PE zaj duab xis, suav nrog:
- Khw hnab movie
- Lub hnab khib nyiab zaj duab xis
- Vest bag film
- Ntim zaj duab xis
- Agricultural zaj duab xis
- Recycled yas zaj duab xis
Qhov kawg zaj duab xis specifications tuaj yeem kho raws li cov neeg siv khoom xav tau ntau lawm.
6. Cov ntaub ntawv siv tau tuaj yeem siv rau hauv lub tshuab no?
Yog lawm. Ib qho ntawm qhov zoo tshaj plaws ntawm ABA qauv yog cov khoom siv rov ua dua tshiab tuaj yeem siv rau hauv nruab nrab txheej. Qhov no pab cov neeg siv khoom txo cov nqi raw khoom thaum tswj cov tsos thiab cov khoom siv ntawm cov yeeb yaj kiab tiav.
7. Jianhao Machinery ua li cas thiaj li ua kom cov yeeb yaj kiab zoo?
Jianhao Machinery txais kev siv tshuab extrusion siab heev, kev tswj qhov kub thiab txias, ruaj khov tshuab, thiab kev tsim cov ntsia hlau zoo kom ntseeg tau tias cov yeeb yaj kiab tuab tuab, tsim npuas ruaj khov, thiab ua haujlwm zoo ib yam.
8. Puas yog Twin Screw ABA Blowing Film Tshuab lub zog- ua haujlwm tau zoo?
Yog lawm. Lub tshuab yog tsim los nrog kev ua kom zoo tshaj plaws extrusion thiab cov khoom siv tau zoo los txo cov kev siv hluav taws xob thaum lub sijhawm ua haujlwm tas mus li. Cov qauv ABA kuj tseem pab txo qis kev siv cov khoom kim heev nkauj xwb, txhim kho kev tsim khoom tag nrho.
9. Cov kev lag luam twg tuaj yeem siv cov yeeb yaj kiab uas tsim los ntawm lub tshuab no?
Cov yeeb yaj kiab uas tsim los ntawm Twin Screw ABA Tshuab Tshuab yog siv dav hauv:
- Kev lag luam ntim khoom noj
- Kev tsim khoom lub hnab
- Kev ntim khoom pov tseg
- Kev ua liaj ua teb
- Muaj kev daws teeb meem ntim khoom
10. Puas yog Jianhao Machinery muab kev teeb tsa thiab tom qab- kev muag khoom?
Yog lawm. Jianhao Machinery muab kev txhawb nqa kev tshaj lij, kev taw qhia kev teeb tsa lub tshuab, kev cob qhia kev ua haujlwm, thiab ntev -lub sijhawm tom qab- kev muag khoom los xyuas kom cov neeg siv khoom tuaj yeem ua haujlwm tau zoo thiab ua haujlwm tau zoo.
