Main Technical Parameters
| Qauv | JH-FM700S | JH-FM900S | JH-FM1100S | JH-FM1300S | JH-FM1500S | JH-FM1700S | JH-FM1900S |
| Cov khoom siv raw | HDPE / LDPE | HDPE / LDPE | HDPE / LDPE | HDPE / LDPE | HDPE / LDPE | HDPE / LDPE | HDPE / LDPE |
| Khoom dav | 200-600 hli | 300-800 hli | 600-1000 hli | 900-1200 hli | 1000-1400 hli | 1000-1600 hli | 1200-1800 hli |
| Khoom Thickness | 0.009-0.20 hli | 0.009-0.20 hli | 0.01-0.20 hli | 0.01-0.30 hli | 0.01-0.40 hli | 0.01-0.50 hli | 0.01-0.50 hli |
| Maximum Extrusion Capacity | 60kg / h | 80kg / h | 100kg / h | 120kg / h | 140kg / h | 160kg / h | 180kg / h |
| Tshuab Extrusion | |||||||
| Ntsia Hlau Diameter | Φ45 hli | Φ50 hli | Φ65 hli | Φ70 hli | Φ80 hli | Φ90 hli | Φ100 hli |
| Draw Ratio ntawm Screw | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 |
| Ntsia Hlau Khoom | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA |
| Khoom Siv Lub tog raj kheej | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-645/38 CMOALA | SACM-64538 CMOALA | SACM-645/38 CMOALA |
| Cov khoom siv lub tog raj kheej txias | 180w*2 | 250w*2 | 250w*3 | 370w*3 | 370w*3 | 370w*4 | 370w*4 |
| Lub Hwj Chim | 15 KW | 18.5 KW TSI | 30 KW | 37 kWm | 45 KW TSI | 55 KW TSI | 75 KW TSI |
| Khoom Taw Qhia Kub Kub Tswj | 3 Zones | 3 Zones | 4 Zones | 5 Zones | 6 Zones | 7 Zones | 7 Zones |
| Kev siv hluav taws xob nruab nrab | 16 kwv | 22 kwv | 35 kwv | 42 kwv | 52 kwv | 60 kwv | 70 kwv |
| Tuag taub hau | |||||||
| Tuag | 60mm (HDPE) 120 hli (LDPE) |
80mm (HDPE) 140 hli (LDPE) |
100 hli (HDPE) 160 hli (LDPE) |
120mm (HDPE) 250 hli (LDPE) |
140mm (HDPE) 250 hli (LDPE) |
160mm (HDPE) 300 hli (LDPE) |
180mm (HDPE) 350 hli (LDPE) |
| Tig | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree | 360 degree |
| Kev Tswj Kub Kub | 2 Zones | 2 Zones | 3 Zones | 3 Zones | 4 Zones | 4 Zones | 6 Zones |
| Dual Air Outlet Cua Ring | Φ700 hli | Φ800 hli | Φ800 hli | Φ1000 hli | Φ1000 hli | Φ1200 hli | Φ1500 hli |
| Ntxuam | 3 kwv | 4 kwv | 5,5 kwv | 5,5 kwv | 7.5 kwm | 7.5 kwm | 11 kwv |
| Extraction ntaus ntawv | |||||||
| Rub Cov Menyuam Dav | 700 hli | 9 000mm | 1100 hli | 1300 hli | 1500 hli | 1700 hli | 1900 hli |
| Traction Ceev | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min |
| Extract lub cev muaj zog | 1,5 kwv | 1,5 kwv | 2.2 kwm | 3 kwv | 4 kwv | 5,5 kwv | 5,5 kwv |
| Coj-Tsev Ntaus | |||||||
| Roll Up Hwj chim | 10N.m | 16N.m | 16N.m | 25N.m | 40N.m | 60N.m | 100N.m |
| Siv -Kev nrawm | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min | 10-100m / min |
| Sab nraud Dimensions | 4.0×2.3×4.5m | 5.5×2.5×5.5m | 6.0×2.8×6.2m | 7.0×3.0×6.8m | 7.5×3.2×7.2m | 8.0×3.5×7.8m | 8.5×4.0×8.5m |

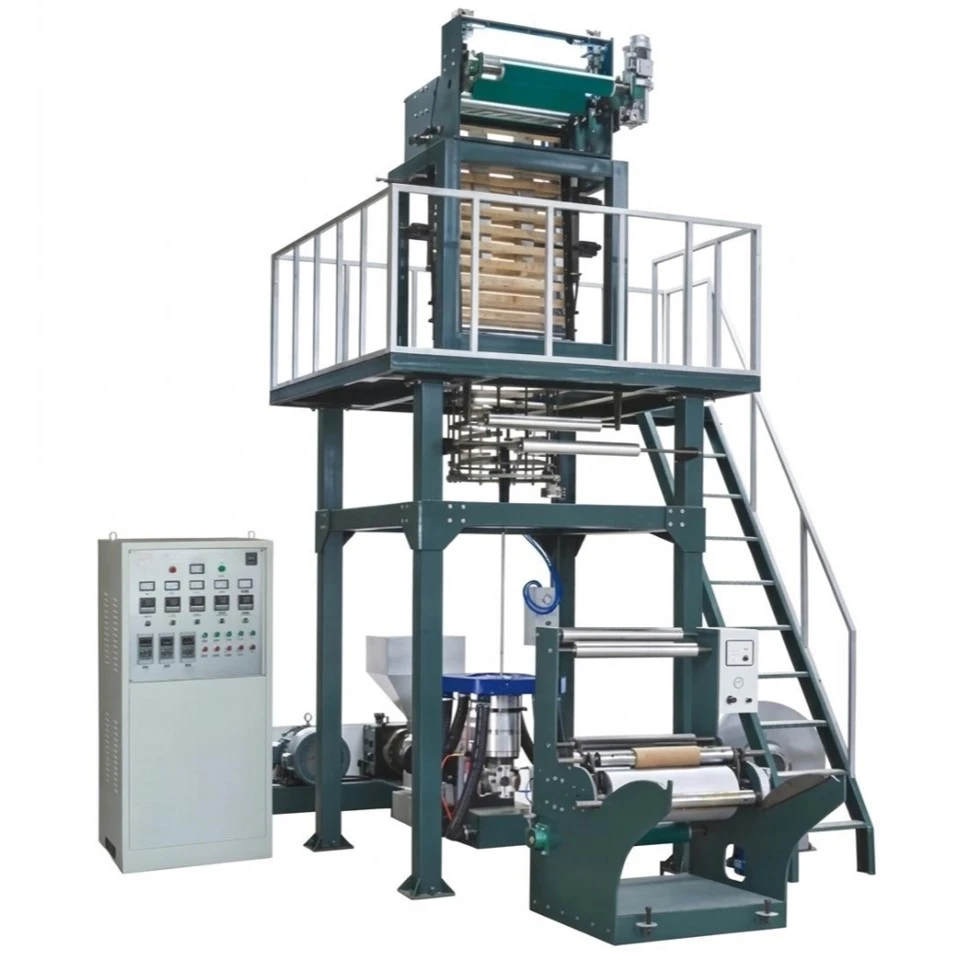

Qhov no High Speed HDPE LDPE Blown Film Tshuab, launched los ntawm Jianhao, yog dav siv nyob rau hauv ntim, khoom siv txhua hnub, kev ua liaj ua teb, thiab kev lag luam. Nws nta ib qho extruder thiab ib qho - ntsia hlau tsim. Ib qho - ntsia hlau thiab ib leeg -extruder configuration yog yooj yim hauv cov qauv thiab thev naus laus zis paub tab, ua kom muaj kev ruaj ntseg txhua hnub thiab 24/7 tsis cuam tshuam kev ua haujlwm, thaum txo cov kev tu ncua nyuaj.
Piv nrog rau ntau- txheej co-extrusion tshuab tshuab extrusion xws li ABA thiab ABC, lub tshuab tshuab cua tshuab tau qis dua cov nqi yuav khoom thiab siv hluav taws xob qis dua, ua rau nws tsim nyog rau cov tuam txhab uas muaj peev txheej pib tab tom nrhiav nkag rau hauv kev lag luam yas. Kev nqis peev tsawg dua thiab cov nqi kho mob tsawg dua tso cai rau cov tuam txhab kom tswj tau cov nqi khiav lag luam zoo dua thiab ua tiav cov nyiaj rov qab sai dua.
Qhov no High Speed HDPE LDPE Tshuab Tshuab siv lub 30: 1 nitrided ntsia hlau, txhais tau hais tias nws muaj kev ua tau zoo ntawm plasticizing, kom ntseeg tau tias cov yas zoo li qub, ruaj khov extrusion, thiab cov yeeb yaj kiab zoo ib yam. Nws tuaj yeem ua haujlwm tsis tu ncua rau 24 teev, txo qhov pib- lub sijhawm nce, nce kev siv cov khoom siv, thiab ua rau cov neeg siv khoom ntau dua cov khoom siv thiab cov nqi qis dua.
Lub Tshuab Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob yog qhov tsim nyog rau ntau yam khoom yas xws li HDPE, LDPE, thiab LLDPE, thiab txhawb nqa cov khoom sib npaug ntawm cov khoom siv rov ua dua tshiab. Qhov no txhais tau hais tias cov nqi tsim khoom tuaj yeem txo qis thaum ua kom ruaj khov thiab ua tiav cov khoom tiav. Cov yeeb yaj kiab tiav uas tsim los ntawm cov cuab yeej no tuaj yeem siv dav hauv ntau yam khoom xws li hnab tsho khuam, hnab khw, hnab khib nyiab, ntim cov yeeb yaj kiab, cov yeeb yaj kiab ua liaj ua teb, cov yeeb yaj kiab tiv thaiv, thiab cov khoom ntim cov yeeb yaj kiab, ua kom tau raws li cov kev xav tau ntawm kev lag luam sib txawv thiab kev lag luam.
Txhawm rau ua kom tau raws li qhov xav tau ntawm cov neeg siv khoom, Jianhao tau ntxiv ntau yam khoom siv rau lub tshuab cua tshuab no, suav nrog kev pub mis tsis siv neeg, tsis siv neeg tswj qhov kub thiab txias, ob lub qhov hluav taws xob cua lub nplhaib, tig lub taub hau tuag, IBC sab hauv cua txias system, tsis siv neeg winding system, EPC tsis siv neeg lub vev xaib kev taw qhia, thiab online thickness ntsuas qhov system. Cov kev xaiv ntse no ua haujlwm ntxiv txhim kho kev tsim khoom, txhim kho cov yeeb yaj kiab thickness uniformity, txo cov nqi zog, thiab ua tau raws li cov qauv siab dua ntawm cov khoom siv hluav taws xob.
Nrog nws cov kev ua haujlwm ruaj khov thiab txhim khu kev qha, cov khoom siv dav dav, kev siv ntau yam thiab cov kev xaiv hloov tau yooj yim, ib qho - ntsia hlau tshuab zaj duab xis tuaj yeem muab cov tuam txhab ntim cov yas ntim nrog cov kev daws teeb meem zoo, ruaj khov thiab kev lag luam, ua rau nws yog ib qho khoom siv zoo tshaj plaws rau kev tsim ntau hom yas ntim zaj duab xis.
Khoom nta
Siab Plasticizing Efficiency
Dual-alloy nitrided screws muab kev ua haujlwm ruaj khov extrusion, xyuas kom zoo ntawm cov yas yaj, thiab txhim kho cov khoom zoo
Precise Temperature Control
Lub 12-zone ntse tswj qhov ntsuas kub tau lees paub cov yeeb yaj kiab tuab thiab txhim khu kev qha.
Durable Ob Chav Alloy Ntsia Hlau
Hnav-cov ntsia hlau tiv taus thiab lub thoob txuas ntxiv lub neej kev pab cuam lub tshuab thaum txo cov nqi tu.
Txuag Zog
Optimized motor configuration minimizes zog noj thaum tswj cov zis siab.
Kev ua haujlwm yooj yim
Tus neeg siv- kev tswj hwm tus phooj ywg tso cai rau cov neeg ua haujlwm kho cov khoom lag luam sai thiab raug.
Stable Zaj duab xis Winding
Kev sib txhuam- hom dual winder muab kev ua haujlwm zoo rau kev ua haujlwm tas mus li.
Daim ntawv thov
- · Lub hnab ntim khoom
- · Cov hnab khib nyiab
- · T-Tshooj Hnab
- · Food Packaging Film
- · Agricultural Zaj duab xis
- · Industrial Ntim Zaj duab xis
- · Tiv thaiv zaj duab xis
- · Kev ntim khoom txhua hnub
Peb Qhov Kev Pabcuam
Ua ntej- Kev Sib Tham Muag
Peb cov kws tshaj lij kev muag khoom muab kev tshaj lij tshuab kev pom zoo raws li koj cov kev xav tau ntau lawm, cov khoom siv raw, thiab cov khoom tiav tiav.
Customized Solutions
Peb muab cov txheej txheem tshuab customized kom tau raws li qhov sib txawv ntau lawm, cov qauv ua yeeb yaj kiab, thiab daim ntawv thov ntim.
Installation & Kev cob qhia
Cov kws tshaj lij engineers muaj nyob rau txawv teb chaws installation, tshuab commissioning, thiab kev cob qhia neeg ua haujlwm kom ntseeg tau tias kev tsim khoom zoo.
Quality Assurance
Txhua lub tshuab ua tiav kev soj ntsuam zoo thiab sim ua haujlwm ua ntej ua zaub mov xa tuaj kom lav qhov kev ua tau zoo thiab kev ua haujlwm ruaj khov.
Kev pab txhawb nqa
Peb pab pawg kws tshaj lij muab kev txhawb nqa online 24/7, kev daws teeb meem hauv thaj chaw deb, thiab cov lus qhia txog kev saib xyuas raws sij hawm kom txo qis sijhawm.
Ib -Xyoo Warranty
Txhua lub tshuab tuaj nrog ib - xyoo lav. Thaum lub sijhawm lav, peb muab cov khoom hloov pauv pub dawb rau tsis yog -kev puas tsuaj rau tib neeg thiab kev txhawb nqa kev ua neej.
FAQ
Q: 1.Cov ntaub ntawv dab tsi tuaj yeem ua cov txheej txheem Single Screw Film Tshuab?
A: Tib Ntsia Hlau Tshuab Tshuab yog tsim los ua ntau yam khoom siv thermoplastic, suav nrog HDPE, LDPE, thiab LLDPE. Nws muab kev ruaj khov extrusion kev ua tau zoo thiab zoo heev zaj duab xis zoo rau cov ntawv ntim sib txawv.
Q: 2. Lub tshuab no tuaj yeem tsim khoom dab tsi?
A: Lub tshuab no tsim nyog rau kev tsim cov hnab ntim khoom, T- lub hnab tsho, hnab khib nyiab, hnab ntim khoom noj, cov yeeb yaj kiab ua liaj ua teb, cov ntawv ntim khoom lag luam, thiab lwm yam khoom siv yas.
Q: 3. Dab tsi yog zaj duab xis thickness ntau?
A: Ib leeg ntsia hlau tshuab tshuab tuaj yeem tsim cov yeeb yaj kiab nrog qhov tuab ntawm 0.005 hli txog 0.10 hli, ua tau raws li qhov yuav tsum tau ua ntawm ob qho tib si hnyav thiab hnyav - lub luag haujlwm ntim.
Q: 4. Lub peev xwm ntawm lub tshuab yog dab tsi?
A: Tus qauv tsim muaj peev xwm yog 40-50 kg / h. Qhov tseeb tso zis yuav txawv nyob ntawm seb cov khoom siv raw, cov yeeb yaj kiab thickness, thiab cov xwm txheej ntau lawm.
Q: 5. Lub tshuab puas tuaj yeem hloov kho?
A: Yog. Peb muab cov kev daws teeb meem raws li koj qhov yuav tsum tau ua, suav nrog cov yeeb yaj kiab dav, ntsia hlau teeb tsa, cov khoom siv hluav taws xob, qhov hluav taws xob, thiab kev xaiv automation systems.
Q: 6. Koj puas muab kev cob qhia kev teeb tsa thiab tus neeg teb xov tooj?
A: Yog. Peb cov kws tshaj lij engineers tuaj yeem muab kev teeb tsa txawv teb chaws, tshuab commissioning, thiab kev cob qhia neeg ua haujlwm kom ntseeg tau tias koj cov kab ntau lawm ua haujlwm tau zoo.
Q: 7. Koj ua li cas thiaj paub meej tias tshuab zoo?
A: Txhua lub tshuab tau txais kev soj ntsuam nruj nruj, kev sim ua haujlwm, thiab kev ntsuas kev ua haujlwm ua ntej xa zaub mov kom ntseeg tau tias kev ua haujlwm ruaj khov thiab txhim khu kev qha.
Q: 8. Koj puas muaj warranty?
A: Peb muab ib - xyoo lav rau txhua lub tshuab. Cov khoom hloov pauv pub dawb muaj rau tsis yog- tib neeg kev puas tsuaj thaum lub sijhawm lav, nrog rau kev txhawb nqa kev ua neej.
Q: 9. Koj puas muab cov kev pab cuam muag khoom tom qab-?
A: Peb muab 24/7 online technical support, kev daws teeb meem rau cov chaw taws teeb, cov khoom seem, kev taw qhia kev saib xyuas, thiab kev pab cuam ntev -lub sij hawm kom txo qis qis qis.
